Реферат: Источники бесперебойного питания

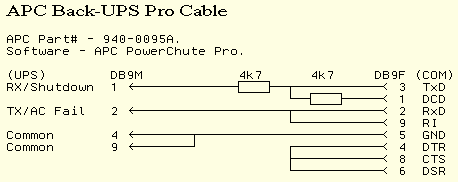

APC Part# - 940-0095A. , Software - APC PowerChute Pro.
Комментаpий: в этой pаспайке
интеpесно то, что RI подключен паpаллельно к RxD. Теоpетически это дает UPS'у
возможность после подачи питания в нагpузку "пpовоциpовать" включение
машин c ATX motherboard'ами, если они умеют выполнять "Power Up at Ring on
COMx". Воспользуется ли этой озможностью APC на пpактике - поживем,
увидим...

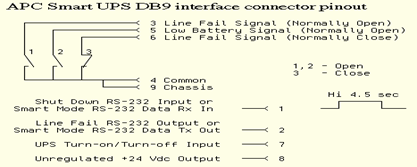

3.1.4 APC Smart UPS DB9 interface connector pinout
3.2 SENDON (NTT)

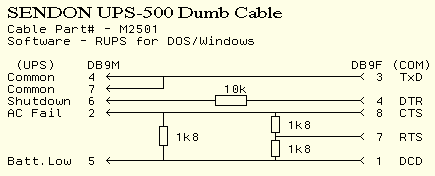

3.2.1 SENDON UPS-500 Dumb Cable
Cable Part# - M2501 , Software - RUPS for DOS/Windows
3.3 Tripp-Lite
3.3.1 OmniPro-450 (675) interface pinout
| Pin # | Signal type |
| 1 | Common (negative) |
| 2 | External inverter shutdown (positive side) |
| 3 | Line fail (norm. open) |
| 4 | External inverter shutdown (negative side) |
| 5 | Line fail (norm. closed) |
| 6 | Low battery (norm. open) |

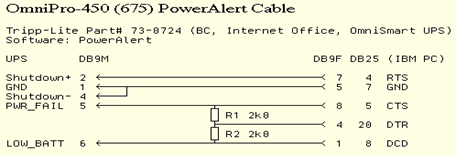

3.3.2 OmniPro-450 (675) PowerAlert Cable
Tripp-Lite Part# 73-0724 (BC, Internet Office, OmniSmart UPS)

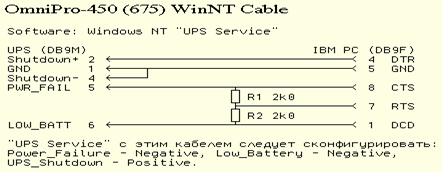

3.3.3 OmniPro-450 (675) WinNT Cable
Software: Windows NT "UPS Service"
"UPS
Service" с этим кабелем следует cконфигурировать так:
Power_Failure - Negative, Low_Battery - Negative, UPS_Shutdown - Positive.

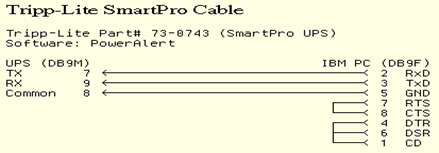

3.3.4 Tripp-Lite SmartPro Cable
Tripp-Lite Part# 73-0743 (SmartPro UPS) , Software: PowerAlert
3.4 Neuhaus Distribution Group

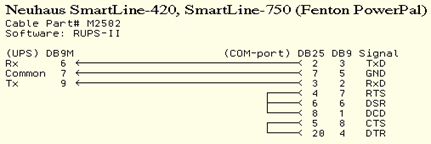

3.4.1 Neuhaus SmartLine-420, SmartLine-750 (Fenton PowerPal)
Software: RUPS-II , Cable Part# M2502
3.4.2 Neuhaus SmartLine/Fenton PowerPal interface pinout:
| Pin # | Signal Type |
| 1 | N/A |
| 2 | AC Failure (Contact Closure) |
| 3 | N/A |
| 4 | Common |
| 5 | Battery Low (Contact Closure) |
| 6 | Rx (RS232) and Turn Off UPS (Contact Closure) |
| 7 | Common |
| 8 | N/A |
| 9 | Tx (RS232) |
The
contact closure signals are relay signals and are "normal open".
The RS232 signals are photo-transistor signals.
3.5
Para Systems Inc.
3.5.1 MinuteMan A-series DB-9 Interface Port
| Pin # | Signal Type |
| 1 | Unused |
| 2 | AC Failure |
| 3 | Unused |
| 4 | Common (same as 7) |
| 5 | Low Battery |
| 6 | RS-232 level shutdown |
| 7 | Common (same as 4) |
| 8 | Ground level shutdown (not available on models smaller than A500) |
| 9 | Reserved |
Pins 2
and 5 are connected to Common when they are true.
On pin 6, an rs-232 high level (>9V) will shutdown, when running on battery.
On pin 8, shorting to ground will shutdown.
3.6 PowerCom

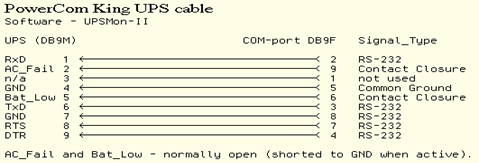

3.6.1 PowerCom King UPS cable Software - UPSMon-II
AC_Fail
and Bat_Low - normally open (shorted to GND when active).
3.7
Exide/Deltec/Fiskars

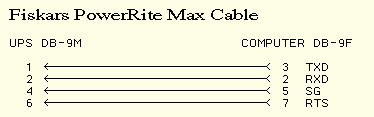

3.7.1 Fiskars PowerRite Max / PowerRite Pro Cable
3.7.2 Fiskars PowerRite UPS Port Configuration Table
| Pin # | Signal Type | Function |
| 1 |
Basic Modem
Mode; |
Remote UPS off: In presence of AC, Output will turn off for 15 seconds after conditionaldelay. In absence of AC, output is kept off until normal AC returns |
| 1 |
Serial Data
Mode; |
RS232 serial communication input. 1200 baud, 8-bit, no parity, one stop bit, one start bit, Xon/Xoff |
| 2 |
Basic Mode; |
AC Input failure |
| 2 |
Serial Data
Mode; |
RS232 serial communication output. Same as input |
| 3 | Output: Open collector transistor ON, 50 mA. 40 VDC rating | AC Input failure |
| 4 | Signal Common | Signal Common |
| 5 | Output: Open collector transistor ON. SO mA. 40 VDC rating | Impending low battery |
| 6 | Input: RS232 level low (-12V) | Plug and Play software enable trigger |
| 7 | Input: Relay contact or RS232 level | Remote output OFF/ON: UPS total output can be kept off with low signal or closing relay contact |
| 8 | Output: 8 to 25 VDC, 5 W constant power (0.63 A max. @ 8V) | Auxiliary Control Power |
| 9 | Chassis | Connection to chassis |
3.8 Hewlett-Packard PowerWise
3.8.1 HP PowerWise L600/L900/L1250 interface pinout
| Pin# | Signal Type | Function |
| 1 | RS-232 Earth Ground | Signal Common for all RS-232 port signals (earth ground referenced) |
| 2 | RS-232 Transmit Output | Serial communication mode - output signal line. |
| 3 | RS-232 Receive Input / Shutdown | Serial communication mode - input signal line. Contact Closure mode - shuts down UPS if signal is held high (RS-232 level) for 200 milliseconds while UPS is operating in battery mode. |
| 4 | AC Line Fail (normally closed) | Contact Closure mode - opened when AC line fails and UPS is operating in battery mode (breaks connection between Pin#4 and Pin#5). |
| 5 | Contact Closure Common / RS-232 Common | Signal Common for all Contact Closure group / RS-232 Signal Common line. |
| 7 | Low Battery (normally open) | Contact Closure mode - closed when remaining "on-battery runtime" drops below the under-defined time limit (makes connection between Pin#7 and Pin#5). |
| 9 | AC Line Fail (normally open) | Contact Closure mode - closed when in battery mode (makes connection between Pin#9 and Pin#5). |

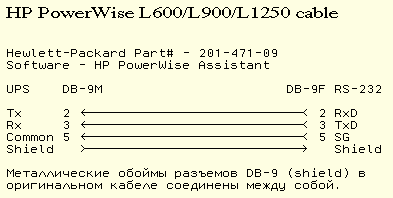

3.8.2 HP PowerWise L600/L900/L1250 cable
Hewlett-Packard Part# - 201-471-09 , Software - HP PowerWise Assistant
3.9 Optiquest/Viewsonic

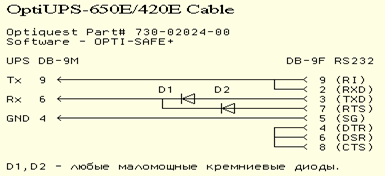

3.9.1 OptiUPS-650E/420E Cable
Optiquest Part# 730-02024-00 , Software - OPTI-SAFE+
3.10 Liebert
3.10.1 UPStation-GXT interface pinout
| Pin# | Function |
| 1 | Low Battery (Optocoupler Collector: +V) |
| 2 | UPS TxD |
| 3 | UPS RxD |
| 4 | Remote ShutDown (+5..12VDC, 10 mA max); on battery operation |
| 5 | Common |
| 6 | Remote ShutDown (Short to pin 5); any mode operation |
| 7 | Low Batery (Optocoupler Emitter: -V) |
| 8 | Utility/Mains Fail (Optocoupler Emitter: -V) |
| 9 | Utility/Mains Fail (Optocoupler Collector: +V) |
Maximum
voltage and current on pins 1,7,8,9 shall be 80 VDC, 10.0 mA max

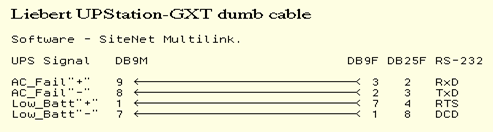

3.10.2 UPStation-GXT dumb cable
Software - SiteNet Multilink.
3.11 Invertomatic-Victron (IMV)

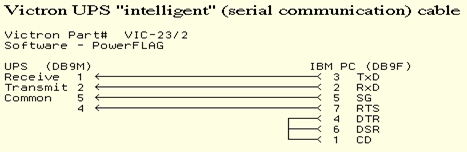

3.11.1 Victron UPS "intelligent" (serial communication) cable
Victron Part# VIC-23/2 , Software - PowerFLAG

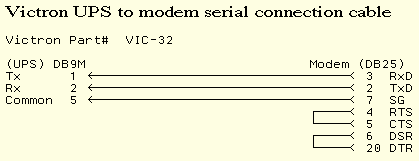

3.11.2 Victron UPS to modem serial connection cable
Victron Part# VIC-32

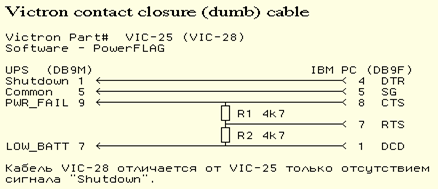

3.11.3 Victron contact closure (dumb) cable
Victron Part# VIC-25 (VIC-28) , Software - PowerFLAG
Кабель VIC-28
отличается от VIC-25 только отсутствием сигнала "Shutdown". Этот
кабель также может быть использован для pаботы с WinNT UPS Service в
конфигуpации: Power_Failure - Negative, Low_Battery - Negative, UPS_Shutdown -
Positive.

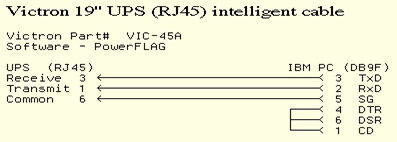

3.11.4 Victron 19" UPS (RJ45) intelligent cable
Victron Part# VIC-45A , Software - PowerFLAG

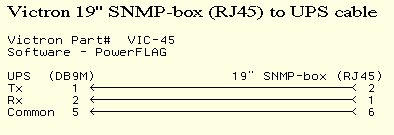

3.11.5 Victron 19" SNMP-box (RJ45) to UPS cable
Victron Part# VIC-45 , Software - PowerFLAG
Источник информации:
1.WEB сайт www.ups.miem.edu.ru
